General Specs
Product Weight (lbs.)	278
Color	Stainless Steel
Air Fry	No
Cooktop Surface Style	Grate
Depth w/Door Open 90 Degrees (in.)	44.25
Appliance Fit Width (in.)	30
Manufacturer Warranty	2 Year Parts & Labor
Color Finish Name	Stainless Steel
ADA Compliant	No
Induction Cooking	No
Range Type	Pro-Style
Number of Elements/Burners	5
Fuel Type	Dual Fuel (NG)
Number of Oven(s)	Single
Depth (in.)	26
Height (in.)	35.5
Width (in.)	29.94
Oven Cleaning Method	Manual Clean
Overview
Type of Fuel	NG/LPG& Electric
Electric	240 V, 60 Hz , Max power 4,000 W
Oven Light	120 V, 60 Hz, 0.2 Amp
Oven Fan	120 V, 60 Hz, 0.45 Amp-0.65 Amp
Cooling Fan	120 V, 60 Hz, 0.35 Amp-0.55 Amp
NG	Input Pressure: 7 inch, Output Pressure: 5 inch.
LP	Input Pressure: 11 inch, Output Pressure: 10 inch
Dimensions

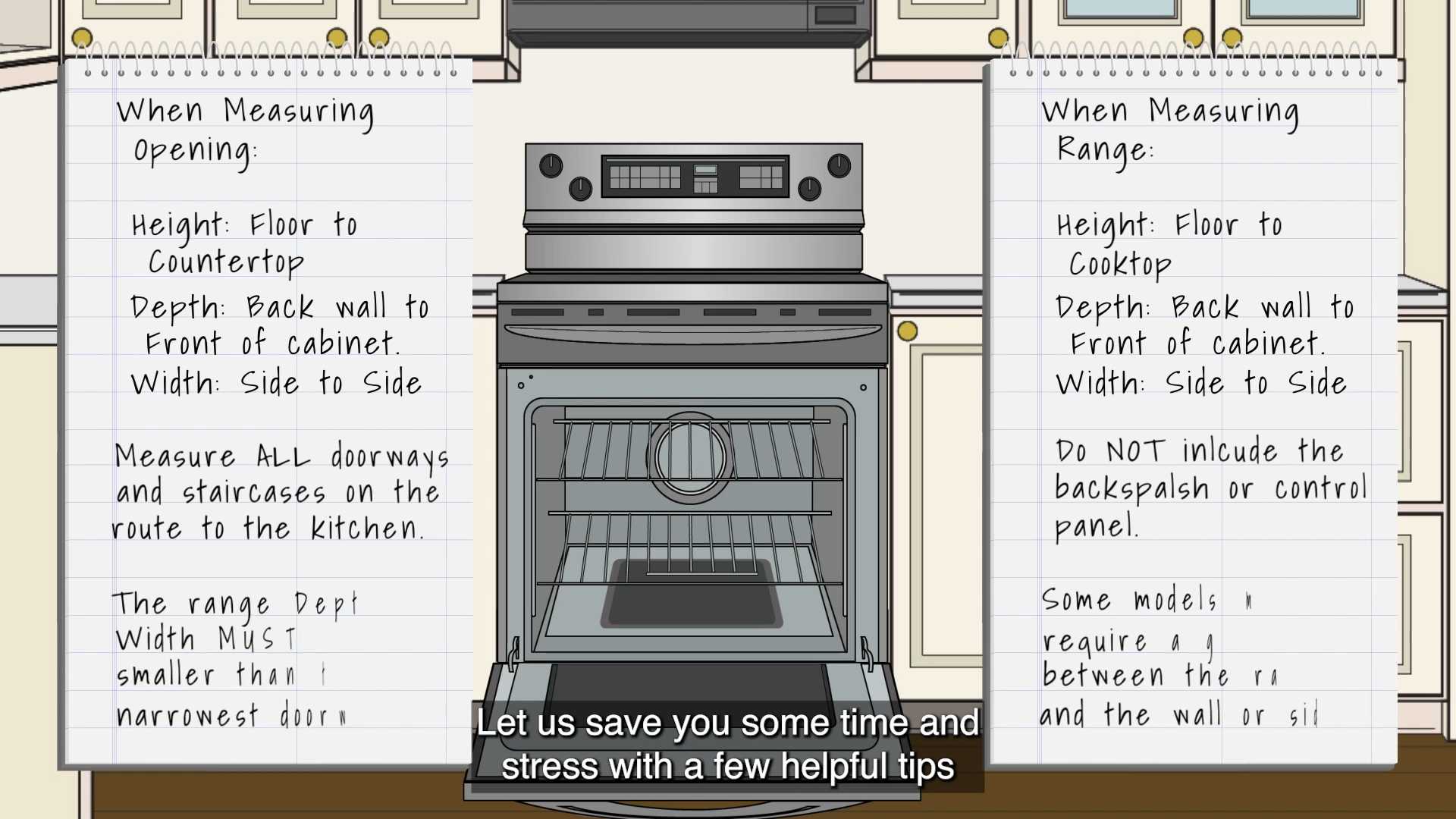

Required Cutout Size (WxDxH)	30“ x 24” - 25” x 35 1/2" - 36 1/2"
Height From the Ground to the Countertop	35 1/2" - 36 1/2"
Adjustable Range Leg	1"
Circuit Breaker	30A
Gas Pipe and Regulator
Distance from regulator (gas pipe) to the side of the range	11.5"
Distance from regulator (gas pipe) to the ground	4.5"
Height from bottom of the Back Panel to the Ground	7.25"
The Depth of the protective back panel	3"
Size of the Gas Inlet	.5"
Regulator's position	At bottom right of the front oven, covered by the kick panel

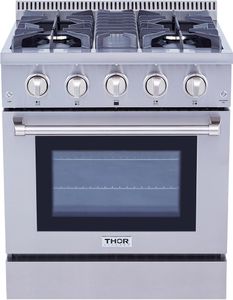

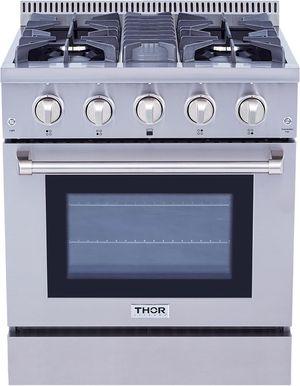

Thor Kitchen® 30" Stainless Steel Pro Style Dual Fuel Range

At a Glance
